Program ini merupakan ujicoba sekaligus latihan menarik data table, menampilkannya pada sebuah template excel menggunakan class BDS dan SAPOFFICEINTEGRATION. Latihan ini saya mengikuti step-step pada tutorial BDS di : http://www.saptechnical.com/Tutorials/OOPS/BDS/Index.htm.
Langkah-langkahnya :
1. Persiapkan Excel Template yang akan digunakan dan simpan di lokal directory dengan extensi .xls.
2. Membuat class BDS lewat TCODE SBDSV1, isikan parameter berikut.

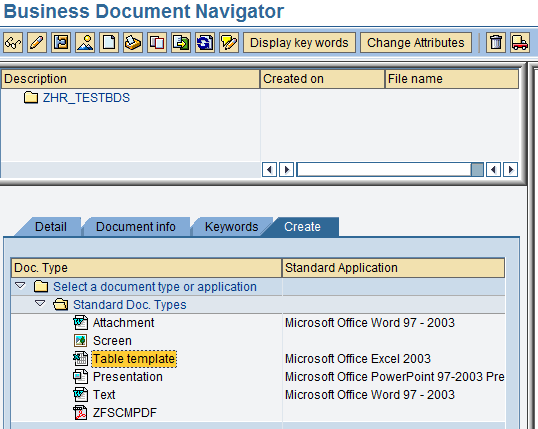

Double click Table Template in Create Tab. Kemudian pilih template excel yang sudah kita buat.
Masukkan nama description.
4. Create sebuah custom table dan isi contoh data. Pada contoh ini saya membuat table yang berisi atribut pegawai.
Mandt (MANDT) PK
NIK (Char 10) PK
Name (Char 40)
Age (INT1)
Email (Char 40)
5. Create program untuk menampilkan data di excel menggunakan class BDS.
*&---------------------------------------------------------------------*
*& Report ZTEST_BDS01
*&---------------------------------------------------------------------*
*& Demo program for displaying table data in a specific excel template
*& using BDS. Also, reads the contents modified by user again into ABAP
*& program after validations and updates the table.
*&---------------------------------------------------------------------*
REPORT ztest_bds01.
*----------------------------------------------------------------------
* Data Declaration
*----------------------------------------------------------------------
* Custom Table With 4 fields
* NIK (PK), NAME, AGE, EMAIL
TABLES: ztest_bds.
TYPES: BEGIN OF ty_emp,
nik TYPE ztest_bds-nik,
name TYPE ztest_bds-name,
age TYPE ztest_bds-age,
email TYPE ztest_bds-email,
END OF ty_emp.
TYPES: BEGIN OF ty_data,
num TYPE i.
INCLUDE TYPE ty_emp.
TYPES: END OF ty_data.
DATA: lt_emp TYPE TABLE OF ty_emp WITH HEADER LINE,
lt_data TYPE TABLE OF ty_data WITH HEADER LINE,
wf_entries TYPE i.
TYPE-POOLS: soi,
sbdst.
DATA: r_document TYPE REF TO cl_bds_document_set,
r_container TYPE REF TO cl_gui_custom_container,
r_excel TYPE REF TO i_oi_spreadsheet,
r_control TYPE REF TO i_oi_container_control,
r_proxy TYPE REF TO i_oi_document_proxy,
r_error TYPE REF TO i_oi_error,
wf_retcode TYPE soi_ret_string.
*----------------------------------------------------------------------
* Selection Screen
*----------------------------------------------------------------------
SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME.
* User will enter the agent ids to be modified
SELECT-OPTIONS: s_nik FOR ztest_bds-nik OBLIGATORY.
SELECTION-SCREEN END OF BLOCK b1.
SELECTION-SCREEN BEGIN OF BLOCK b2 WITH FRAME.
* Details of table template in BDS to be entered
PARAMETERS: p_clsnam TYPE sbdst_classname DEFAULT 'ZHR_TESTBDS' OBLIGATORY,
p_clstyp TYPE sbdst_classtype DEFAULT 'OT' OBLIGATORY,
p_objkey TYPE sbdst_object_key DEFAULT 'TPL01' OBLIGATORY,
p_desc TYPE char255 DEFAULT 'TPLBDS01' OBLIGATORY.
SELECTION-SCREEN END OF BLOCK b2.
*----------------------------------------------------------------------
* START OF SELECTION
*----------------------------------------------------------------------
START-OF-SELECTION.
* Call Excel Inplace Display
CALL SCREEN 100. "Create a screen 100 with custom container 'EXCEL'
*----------------------------------------------------------------------
* SCREEN LOGIC
*----------------------------------------------------------------------
*&---------------------------------------------------------------------*
*& Module STATUS_0100 OUTPUT
*&---------------------------------------------------------------------*
MODULE status_0100 OUTPUT.
SET PF-STATUS 'ZSTANDARD'. "Enable SAVE, BACK, EXIT, CANCEL
SET TITLEBAR 'TITLE100'. "Set title
* Get table data
PERFORM f_get_table_data.
* Open the excel template in BDS in-place
PERFORM f_open_document USING p_clsnam
p_clstyp
p_objkey
p_desc.
* Display table data in the excel template
PERFORM f_dis_table_data.
* Protect the whole sheet except the editable fields
PERFORM f_protect_sheet.
ENDMODULE. " STATUS_0100 OUTPUT
*&---------------------------------------------------------------------*
*& Module USER_COMMAND_0100 INPUT
*&---------------------------------------------------------------------*
MODULE user_command_0100 INPUT.
CASE sy-ucomm.
WHEN 'BACK' OR 'EXIT' OR 'CANCEL' OR '&F03'.
* Close document
PERFORM f_close_document.
LEAVE TO SCREEN 0.
WHEN '&SAVE'.
* Save the modified entries into database
PERFORM f_save_document.
ENDCASE.
ENDMODULE. " USER_COMMAND_0100 INPUT
*----------------------------------------------------------------------
* SUBROUTINES
*----------------------------------------------------------------------
*&---------------------------------------------------------------------*
*& Form f_get_table_data
*&---------------------------------------------------------------------*
* Get fresh data from YSM_AGENTS
*----------------------------------------------------------------------*
FORM f_get_table_data .
DATA: l_counter TYPE i.
FIELD-SYMBOLS : <fs> TYPE ty_emp.
* Get all the agents from table
SELECT nik
name
age
email
FROM ztest_bds
INTO TABLE lt_emp
WHERE nik IN s_nik.
IF sy-subrc NE 0.
MESSAGE 'No Agent Details Found' TYPE 'E'.
ELSE.
CLEAR l_counter.
UNASSIGN <fs>.
LOOP AT lt_emp ASSIGNING <fs>.
ADD 1 TO l_counter.
lt_data-num = l_counter.
lt_data-nik = <fs>-nik.
lt_data-name = <fs>-name.
lt_data-age = <fs>-age.
lt_data-email = <fs>-email.
APPEND lt_data.
ENDLOOP.
ENDIF.
* Get the no of rows to be displayed
DESCRIBE TABLE lt_emp LINES wf_entries.
ENDFORM. " f_get_table_data
*&---------------------------------------------------------------------*
*& Form f_open_document
*&---------------------------------------------------------------------*
* Open the table template from BDS
*----------------------------------------------------------------------*
* --> l_clsnam Class Name in OAOR
* --> l_clstyp Class Type in OAOR
* --> l_objkey Object key in OAOR
* --> l_desc Description of the excel template in OAOR
*----------------------------------------------------------------------*
FORM f_open_document USING l_clsnam TYPE sbdst_classname
l_clstyp TYPE sbdst_classtype
l_objkey TYPE sbdst_object_key
l_desc TYPE char255.
DATA: locint_signature TYPE sbdst_signature,
locint_uris TYPE sbdst_uri,
locwa_signature LIKE LINE OF locint_signature,
locwa_uris LIKE LINE OF locint_uris.
IF NOT r_document IS INITIAL.
RETURN.
ENDIF.
* Create container control
CALL METHOD c_oi_container_control_creator=>get_container_control
IMPORTING
control = r_control
retcode = wf_retcode.
IF wf_retcode NE c_oi_errors=>ret_ok.
CALL METHOD c_oi_errors=>raise_message
EXPORTING
type = 'E'.
ENDIF.
* Initialize Custom Control
CREATE OBJECT r_container
EXPORTING
container_name = 'CC_EXCEL'. "Custom Control Name
CALL METHOD r_control->init_control
EXPORTING
r3_application_name = 'EXCEL INPLACE BDS'
inplace_enabled = abap_true
inplace_scroll_documents = abap_true
parent = r_container
IMPORTING
retcode = wf_retcode.
IF wf_retcode NE c_oi_errors=>ret_ok.
CALL METHOD c_oi_errors=>raise_message
EXPORTING
type = 'E'.
ENDIF.
* Create object for cl_bds_document_set
CREATE OBJECT r_document.
* Get Document with URL
locwa_signature-prop_name = 'DESCRIPTION'.
* Description of the table template in OAOR
locwa_signature-prop_value = l_desc.
APPEND locwa_signature TO locint_signature.
CALL METHOD r_document->get_with_url
EXPORTING
classname = l_clsnam
classtype = l_clstyp
object_key = l_objkey
CHANGING
uris = locint_uris
signature = locint_signature
EXCEPTIONS
nothing_found = 1
error_kpro = 2
internal_error = 3
parameter_error = 4
not_authorized = 5
not_allowed = 6.
IF sy-subrc NE 0.
MESSAGE 'Error Retrieving Document' TYPE 'S' DISPLAY LIKE 'E'.
EXIT.
ENDIF.
READ TABLE locint_uris INTO locwa_uris INDEX 1.
CALL METHOD r_control->get_document_proxy
EXPORTING
document_type = 'Excel.Sheet'
IMPORTING
document_proxy = r_proxy
retcode = wf_retcode.
IF wf_retcode NE c_oi_errors=>ret_ok.
CALL METHOD c_oi_errors=>show_message
EXPORTING
type = 'E'.
ENDIF.
* Open Document
CALL METHOD r_proxy->open_document
EXPORTING
document_url = locwa_uris-uri
open_inplace = abap_true
protect_document = abap_true "Protect Document initially
IMPORTING
retcode = wf_retcode.
IF wf_retcode NE c_oi_errors=>ret_ok.
CALL METHOD c_oi_errors=>show_message
EXPORTING
type = 'E'.
ENDIF.
* Get Excel Interface
CALL METHOD r_proxy->get_spreadsheet_interface
IMPORTING
sheet_interface = r_excel
retcode = wf_retcode.
IF wf_retcode NE c_oi_errors=>ret_ok.
CALL METHOD c_oi_errors=>show_message
EXPORTING
type = 'E'.
ENDIF.
ENDFORM. " f_open_document
*&---------------------------------------------------------------------*
*& Form f_dis_table_data
*&---------------------------------------------------------------------*
* Display data in table template
*----------------------------------------------------------------------*
FORM f_dis_table_data .
DATA: locint_fields TYPE TABLE OF rfc_fields.
* Create a range to insert data
PERFORM f_create_range USING 9 "Begin on 9th row
2 "Begin on 2nd col
wf_entries "No of rows reqd
5 "No of cols reqd
'AGENTS'. "Range name
*-> Set Frame to the range
*# Calculation of TYP parameter
* The parameter has 8 bits
*0 Sets the left margin
*1 Sets the top margin
*2 Sets the bottom margin
*3 Sets the right margin
*4 Horizontal line
*5 Sets the left margin
*6 Thickness
*7 Thickness
* My figure will be 7 6 5 4 3 2 1 0
* 1 0 1 1 1 1 1 1
* Binary 1011 1111 stands for 191 in decimal
* Check SAP help for more info.....
* http://help.sap.com/saphelp_NW04s/helpdata/en/
" 21/b531bfe1ba11d2bdbe080009b4534c/frameset.htm
CALL METHOD r_excel->set_frame
EXPORTING
rangename = 'AGENTS'
typ = 191
color = 21
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
* Get field attributes of the table to be displayed
CALL FUNCTION 'DP_GET_FIELDS_FROM_TABLE'
TABLES
data = lt_data
fields = locint_fields
EXCEPTIONS
dp_invalid_table = 1
OTHERS = 2.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
* Insert the table entries into Excel
CALL METHOD r_excel->insert_one_table
EXPORTING
fields_table = locint_fields[] "Defn of fields
data_table = lt_data[] "Data
rangename = 'AGENTS' "Range Name
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
ENDFORM. " f_dis_table_data
*&---------------------------------------------------------------------*
*& Form f_protect_sheet
*&---------------------------------------------------------------------*
* Protect the whole sheet except the fields to edited
*----------------------------------------------------------------------*
FORM f_protect_sheet .
DATA: loc_protect TYPE c,
loc_sheetname TYPE char31.
* Check whether the sheet is protected
* in case it's unprotected manually
CALL METHOD r_excel->get_active_sheet
IMPORTING
sheetname = loc_sheetname
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
CALL METHOD r_excel->get_protection
EXPORTING
sheetname = loc_sheetname "Active sheet name
IMPORTING
error = r_error
retcode = wf_retcode
protect = loc_protect.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ELSE.
* If not protected, protect the sheet
IF loc_protect NE abap_true.
CALL METHOD r_excel->protect
EXPORTING
protect = abap_true
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
ENDIF.
ENDIF.
* The user should not be allowed to change the primary fields.
* The sheet is protected against change and a particular range will
* be unprotected for editing
* Create a range to enable editing for non key fields
PERFORM f_create_range USING 9 "Begin on 9th row
4 "Begin on 4th col
wf_entries "No of rows reqd
3 "Only 3 columns are editable
'EDIT'. "Range name
* Unprotect the range for editing
CALL METHOD r_excel->protect_range
EXPORTING
name = 'EDIT'
protect = space
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
*->Set colour to editable range
*# Check SAP help link for colour codes
* http://help.sap.com/saphelp_NW04s/helpdata/en
"/21/b531bfe1ba11d2bdbe080009b4534c/frameset.htm
CALL METHOD r_excel->set_color
EXPORTING
rangename = 'EDIT'
front = 1
back = 4
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
ENDFORM. " f_protect_sheet
*&---------------------------------------------------------------------*
*& Form f_close_document
*&---------------------------------------------------------------------*
* Close the document when user leaves the program
*----------------------------------------------------------------------*
FORM f_close_document .
* Close document
IF NOT r_proxy IS INITIAL.
CALL METHOD r_proxy->close_document
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
ENDIF.
ENDFORM. " f_close_document
*&---------------------------------------------------------------------*
*& Form f_save_document
*&---------------------------------------------------------------------*
* Save the modified entries into database table
*----------------------------------------------------------------------*
FORM f_save_document .
DATA: locint_ranges TYPE soi_range_list,
locwa_ranges TYPE soi_range_item,
locint_moddata TYPE soi_generic_table,
locwa_moddata TYPE soi_generic_item,
loclt_emp_mod TYPE TABLE OF ztest_bds,
locwa_agents_mod TYPE ztest_bds,
loc_error_row TYPE i.
* Initialize the colour of the editable range
CALL METHOD r_excel->set_color
EXPORTING
rangename = 'EDIT'
front = 1
back = 4
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
* Define the range from which data needs to be read
locwa_ranges-name = 'AGENTS'.
locwa_ranges-rows = wf_entries.
locwa_ranges-columns = 3.
APPEND locwa_ranges TO locint_ranges.
* Get modified data
CALL METHOD r_excel->get_ranges_data
IMPORTING
contents = locint_moddata
error = r_error
CHANGING
ranges = locint_ranges.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
LOOP AT locint_moddata INTO locwa_moddata.
CASE locwa_moddata-column.
WHEN 1.
locwa_agents_mod-nik = locwa_moddata-value.
WHEN 2.
locwa_agents_mod-name = locwa_moddata-value.
WHEN 3.
locwa_agents_mod-email = locwa_moddata-value.
*-> Validate the email id entered
* Get the current row no taking account the rows
* in the sheet above the range
loc_error_row = locwa_moddata-row + 8.
PERFORM f_validate_email USING locwa_agents_mod-email
loc_error_row.
ENDCASE.
AT END OF row.
locwa_agents_mod-mandt = sy-mandt.
APPEND locwa_agents_mod TO loclt_emp_mod.
CLEAR locwa_agents_mod.
ENDAT.
ENDLOOP.
* Update Table
MODIFY ztest_bds FROM TABLE loclt_emp_mod.
COMMIT WORK.
IF sy-subrc EQ 0.
MESSAGE 'DATA UPDATED' TYPE 'S'.
ELSE.
MESSAGE 'DATA NOT UPDATED' TYPE 'E'.
ENDIF.
ENDFORM. " f_save_document
*&---------------------------------------------------------------------*
*& Form f_validate_email
*&---------------------------------------------------------------------*
* Validate the email id entered
*----------------------------------------------------------------------*
* -->l_email Email Id
*----------------------------------------------------------------------*
FORM f_validate_email USING l_email TYPE c
l_err_row TYPE i.
TYPE-POOLS:sx.
DATA: locwa_address TYPE sx_address.
* Check Email Id
locwa_address-type = 'INT'.
locwa_address-address = l_email.
CALL FUNCTION 'SX_INTERNET_ADDRESS_TO_NORMAL'
EXPORTING
address_unstruct = locwa_address
EXCEPTIONS
error_address_type = 1
error_address = 2
error_group_address = 3
OTHERS = 4.
IF sy-subrc <> 0.
* Create a range to highlight the error cell
PERFORM f_create_range USING l_err_row
5 "Column no for email id
1
1
'ERROR'.
* Display the error cell in red
CALL METHOD r_excel->set_color
EXPORTING
rangename = 'ERROR'
front = 1
back = 3
IMPORTING
error = r_error
retcode = wf_retcode.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
MESSAGE 'Invalid Email Address' TYPE 'E'.
ENDIF.
ENDFORM. " f_validate_email
*&---------------------------------------------------------------------*
*& Form f_create_range
*&---------------------------------------------------------------------*
* Create a range dynamically in excel sheet
*----------------------------------------------------------------------*
* -->l_top Begin on row
* -->l_left Begin on column
* -->l_row No of rows
* -->l_column No of columns
* -->l_range Range Name
*----------------------------------------------------------------------*
FORM f_create_range USING l_top TYPE i
l_left TYPE i
l_row TYPE i
l_column TYPE i
l_range TYPE char255.
* Select area for entries to be displayed
CALL METHOD r_excel->set_selection
EXPORTING
top = l_top
left = l_left
rows = l_row
columns = l_column.
* Define Range
CALL METHOD r_excel->insert_range
EXPORTING
name = l_range
rows = l_row
columns = l_column
IMPORTING
error = r_error.
IF r_error->has_failed = abap_true.
CALL METHOD r_error->raise_message
EXPORTING
type = 'E'.
ENDIF.
ENDFORM. " f_create_range
Result.
No comments:
Post a Comment
